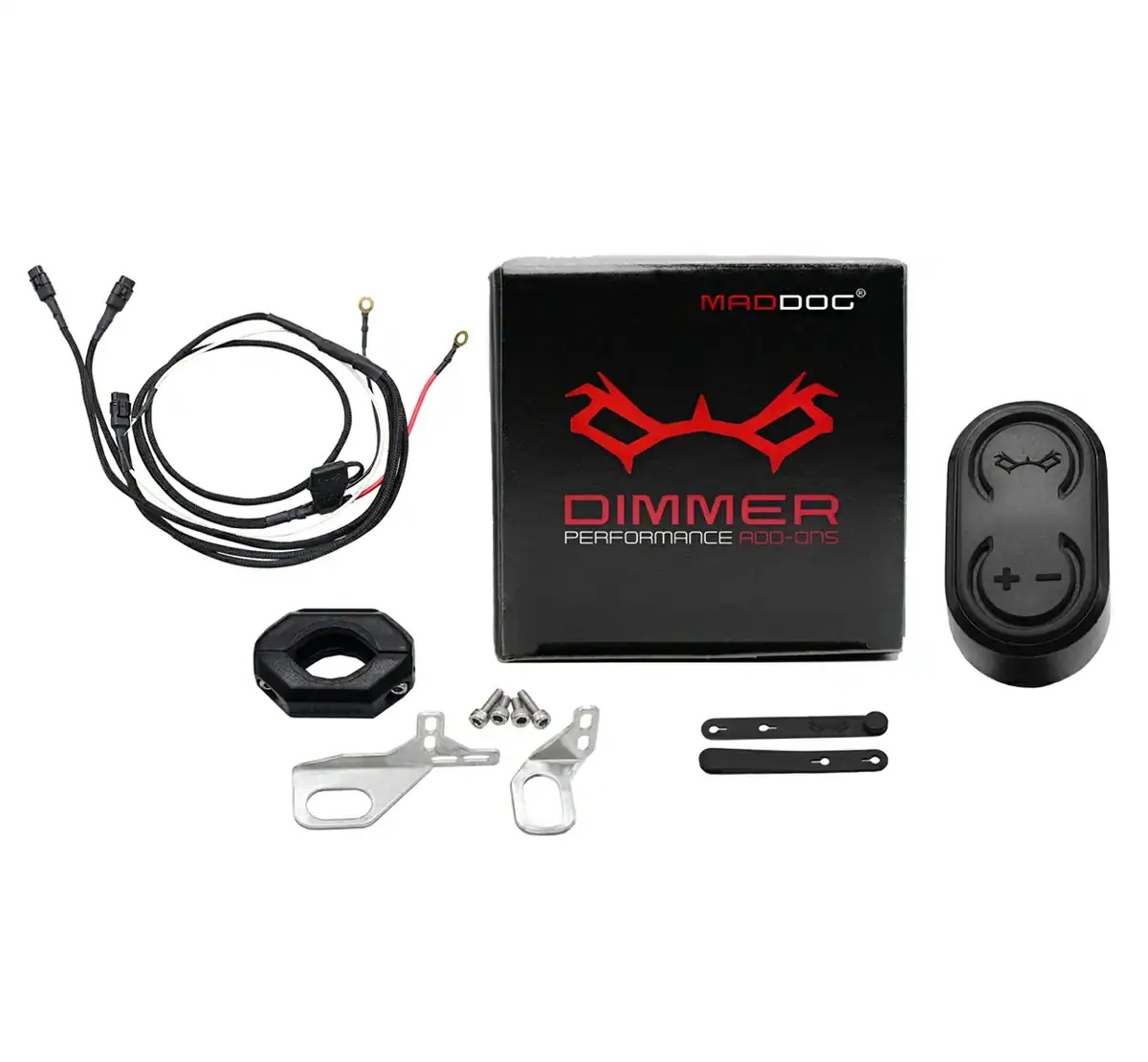

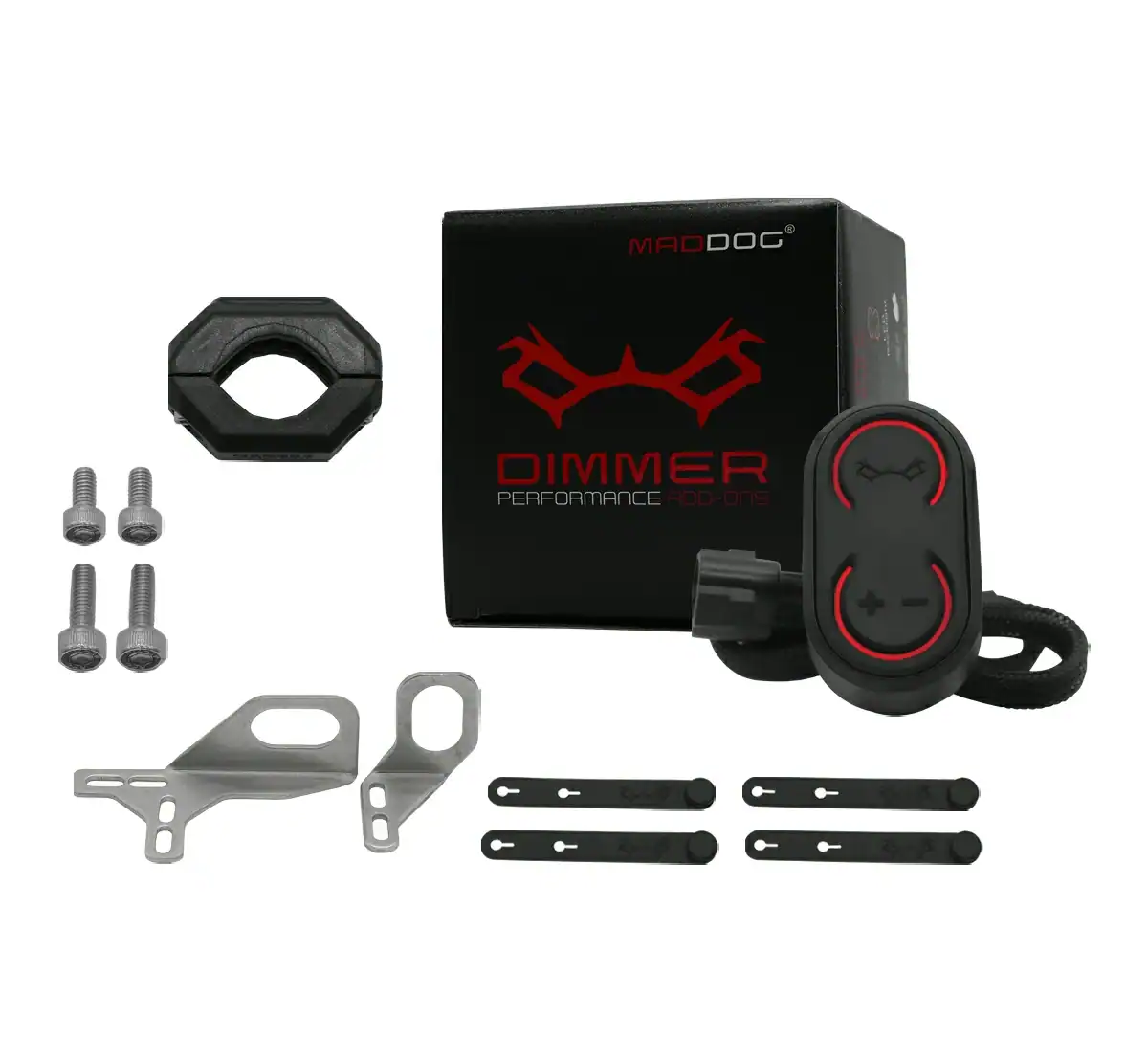

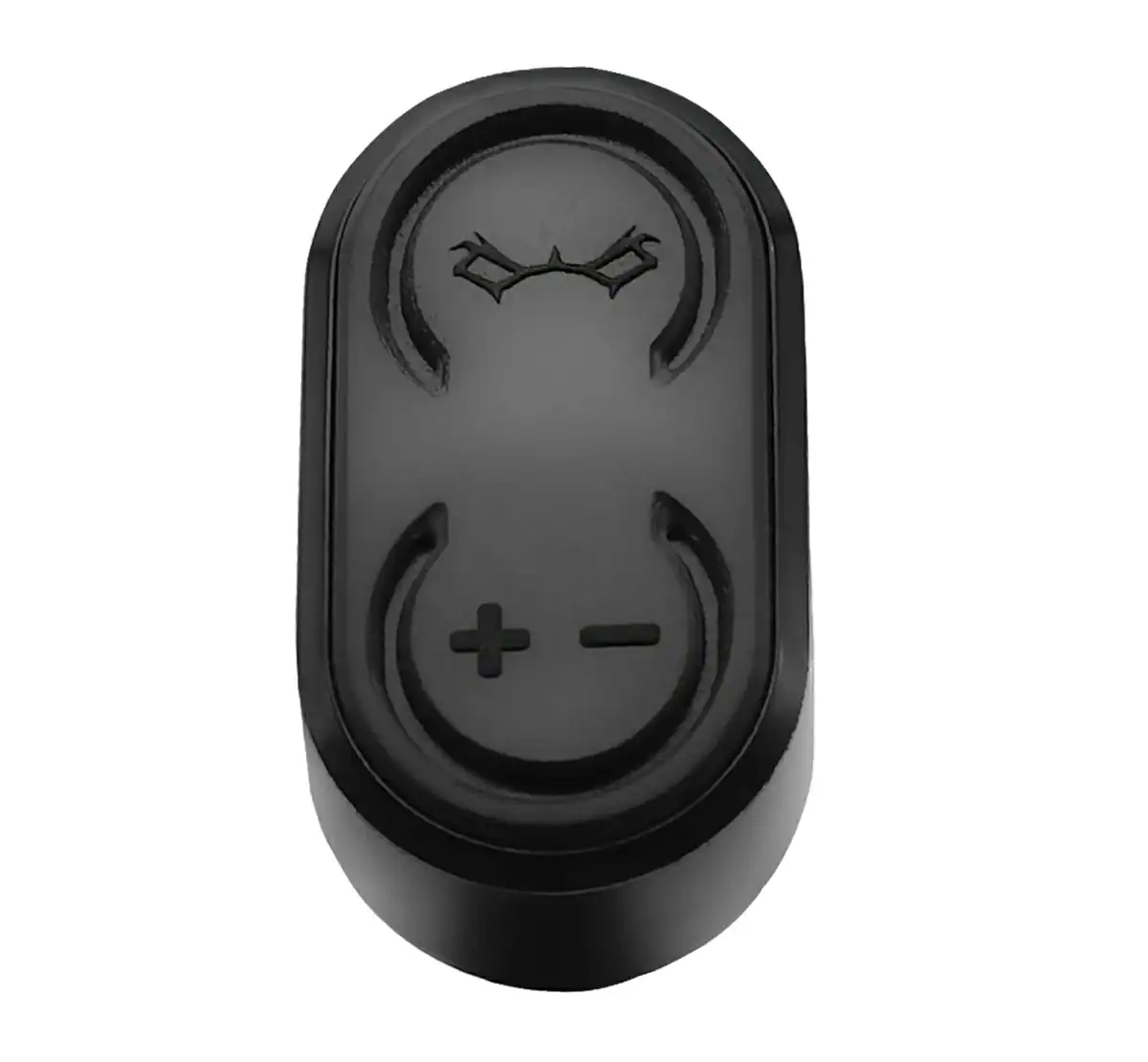

Maddog Dimmer Switch With WireHarness

Key Features of the Dimmer:

• Quad-Level Dimming: Enjoy four adjustable brightness levels 100%, 75%, 50% and 25% to match various riding conditions.
• Pass Functionality: Quickly flash your lights for added safety and visibility when overtaking or signaling.
• Beacon Mode: Activate a distinct flashing pattern to draw attention in emergency or low-visibility situations.

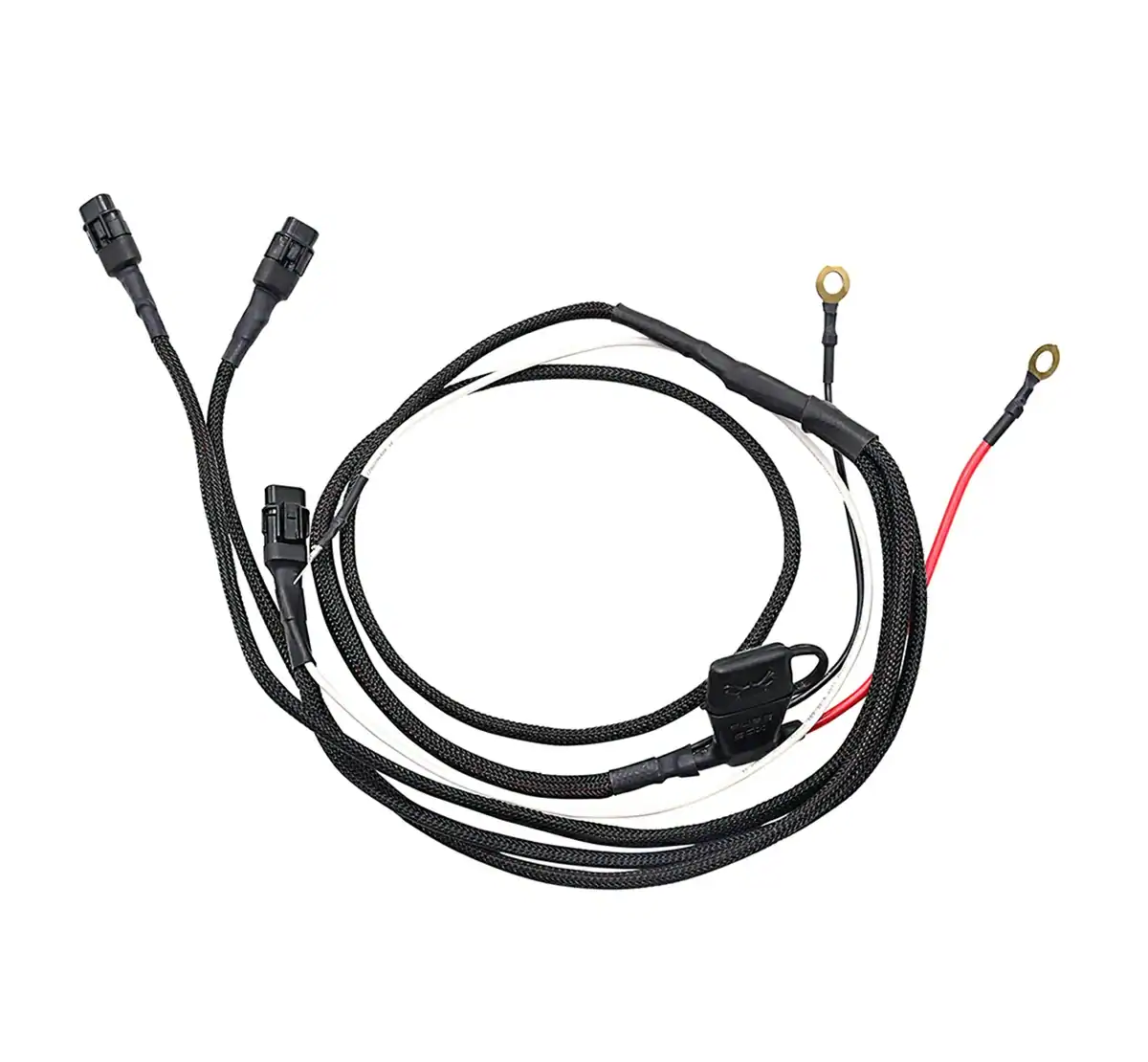

The Dimmer comes with its own dedicated wire harness, eliminating the need for any additional wiring and does not require an additional Switch or Switch Pro.

In addition, It is not compatible with the standard Wire Harness, Wire Harness Pro, or Dual Wire Harness Pro.

Compatibility: Maddog Scout, Scout X, Alpha, Delta & Rage Lights

Specifications

• Relay  :   Solid State Relay protected circuit
• Wattage   :  140
• Voltage  :   9-24v
• Fuse  :   15A
• Temp  :   -10°C to +50°C
• Life span  :   50000 Hrs
• Wire Thickness  :   1 sqmm
• Total Length  :   1.5M
• IP Rating  :   IP-67
• Country of Origin  :   INDIA
