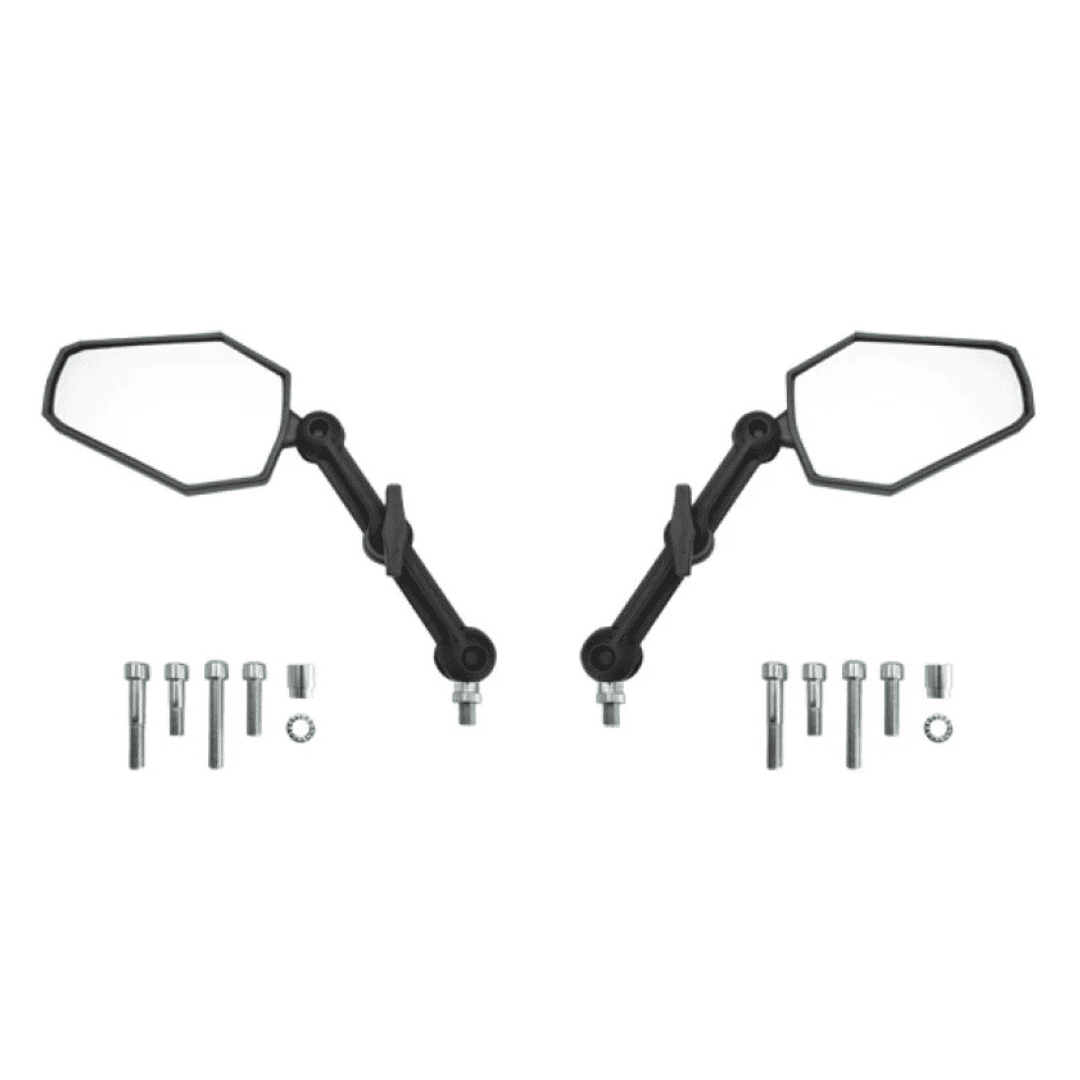

DoubleTake Adventure Mirrors

The DoubleTake Adventure Mirrors are built for adventure and off-road riding, featuring a highly durable mirror body that can fold out of the way along the handlebar during an impact or when navigating tight spaces. The intelligently engineered RAM-style ball-and-socket mounting system provides strong clamping, easy adjustment and excellent flexibility.

The generously sized convex mirror provides a wide rearward field of view, making it easier to monitor traffic and surroundings while riding.

Mirror Features

• Mirror Size: 135 × 90 mm (5.25 × 3.5 inches)
• Overall Length: 175 mm (7 inches)
• Mirror Body: Reinforced Zytel construction
• Lens: SAE-spec convex glass
• Foldable Design: Easily fold, remove or swap between motorcycles
• Wide Field of View: Convex lens provides an expanded rearward viewing angle

Important: The “indestructible” construction refers to the mirror body only. The glass lens can still be damaged by impact.

KTM & Reverse-Thread Fitment

Some motorcycles, including the KTM 390, use opposite/reverse mirror threads. If your motorcycle has this type of thread configuration, a compatible mirror thread adaptor is required for installation.

DoubleTake 15 cm Arm

The DoubleTake 15.0 Arm is designed to provide improved mirror stability and visibility, particularly on motorcycles equipped with luggage or wider accessories.

Technical Specifications

Key Arm Features

Improved Clamping:
The complete mounting system is engineered to keep the mirror securely positioned during normal riding while allowing it to move when subjected to an impact.

Extended Length:
At 15 cm center-to-center, the arm is approximately 15% longer than competing designs, providing improved visibility around luggage and other rear-mounted accessories.

Radial Ridges:
The base clamping surface features radial ridges that help prevent the arm from unintentionally rotating. The design also allows the system to move during an impact without relying on rigid mechanical interference.

Asymmetrical Clamping:
The arm uses different ball diameters at each end, allowing the clamp to sit closer to the mirror. The larger base ball improves stiffness, while the offset clamping design helps maintain consistent rigidity throughout the system.

Glove-Friendly Adjustment:
A low-profile thumb nut with an extended 25% length makes mirror adjustments easier, even while wearing motorcycle gloves.

Accessory Compatibility:
The mirror-side 2.54 cm (1-inch) socket is compatible with accessories using a 2.54 cm (1-inch) ball, including compatible GPS mounts, camera mounts and other accessories.

DoubleTake Base Kit

The DoubleTake Base Kit provides a versatile mounting solution designed to fit a wide range of motorcycles without requiring additional unsightly adapters.

Base Kit Includes

• 1.125-inch Ball Stud
• 10 mm × 1.25 long bolt
• 10 mm × 1.25 short bolt
• 10 mm × 1.25 reverse-thread bolt
• 10 mm × 1.5 short bolt
• Lock washer

Base Specifications

Base Kit Features

Universal Fit:
Each ball kit includes four different bolts to accommodate a wide range of motorcycle mirror mounting configurations and reduce the need for additional adapters.

Large 1.125-inch Ball:
The larger 1.125-inch ball increases system rigidity, helping keep the mirror securely positioned without requiring excessive tightening of the arm.

Durable Ball Construction:
The aluminum-filled ball is coated with high-quality nitrile rubber, designed to withstand prolonged compression and maintain its grip over time.

Secure Mounting:
The included lock washer helps prevent the base ball from rotating relative to the motorcycle, keeping the mirror securely positioned during riding.

Ideal For

The DoubleTake Adventure Mirrors are particularly suited for:

• Adventure motorcycles
• Dual-sport motorcycles
• Off-road riding
• Touring motorcycles
• Motorcycles equipped with panniers or luggage
• Riders who frequently ride on rough terrain
• Riders looking for foldable and easily adjustable mirrors
