Baja Designs Aux LED Light – Squadron 2.0 Sport

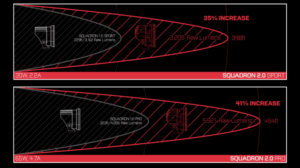

The all-new Baja Designs Squadron 2.0 Sport brings upgraded performance and next-generation lighting technology to one of the brand’s most popular compact LED auxiliary lights. Each light produces 3,200 lumens while consuming just 30W of power, delivering a 26% improvement in output compared to the previous generation.

Built with redesigned optics, the Squadron 2.0 Sport offers improved beam distance, wider light spread, and reduced spill for better visibility and control during night rides and off-road adventures.

Multi-Color Selectable Backlight

The Squadron 2.0 Sport features an integrated 9-color selectable backlight system. Users can switch between red, green, blue, magenta, cyan, amber, yellow, pink, and white using the supplied harness. The selected color remains stored even after the light is switched off, ensuring your preferred setup is always ready.

Key Features & Upgrades

• Enhanced beam pattern for increased distance and wider coverage
• Reduced light spill for improved visibility control
• Integrated 9-color customizable backlight
• Heavy-duty 4-pin Deutsch connector for reliable wiring durability
• uService® clip-in reflector system for easier lens replacement
• Redesigned gasket for superior weather protection
• New mounting bracket with greater vertical adjustability
• Durable gloss black aluminum housing

Technical Specifications (Per Light)

• Brightness: 3,200 Lumens
• Power Consumption: 30W / 2.2A
• Color Temperature: 5000K Daylight
• Operating Voltage: 12V–32V
• Waterproof Rating: IP69K
• Dimensions: 3.318” (H) × 3.289” (W) × 2.840” (D)

ELS™ Performance Scores

• Spot Clear: 86° / 6.1 / 454 / 4930
• Driving Combo Clear: 128° / 7.4 / 403 / 4955
• Wide Cornering Clear: 132° / 7.6 / 159 / 4946
• Work/Scene Clear: 148° / 8.0 / 64 / 4575

Harness Kit Includes

• 2 × Squadron 2.0 Sport Light Pods
• Mounting Hardware
• 1 × Wiring Harness

Non-Harness Kit Includes

• 2 × Squadron 2.0 Sport Light Pods
• Mounting Hardware

ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY.
